Amplificatori - Testata / Cassa Bassi

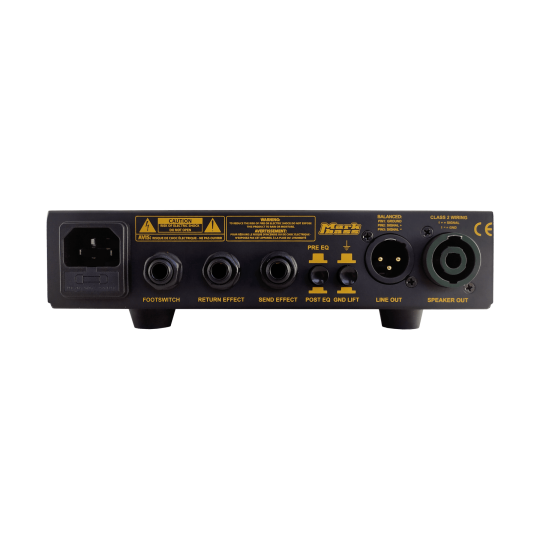

INPUTS INPUT impedance: 1 Mohm, max. voltage: 15 Vpp RETURN impedance: 33 Kohm, max. voltage: 10 Vpp CONTROLS GAIN –60 dB to +23 dB range PRE/POST EQ (for line out) switch on rear panel GROUND LIFT switch on rear panel FOOTSWITCH (not included) for flat/scooped switch MASTER VOLUME EQUALIZATION LOW: center frequency 60 Hz; level: ±16 dB MID LOW: center frequency 360 Hz; level: ±16 dB MID HIGH: center frequency 800 Hz; level: ±16 dB HIGH: center frequency 5 kHz; level: ±16 dB OUTPUTS SEND EFFECTS: unbalanced, max. voltage 20 Vpp (Pre Eq) LINE OUT balanced XLR, Maximum Voltage 10 Vpp, Impedance 600 ohm SPEAKER OUT: speakon/1/4” combo DIMENSIONS AND WEIGHT WIDTH: 7.87 in. / 20 cm DEPTH: 8.27 in. / 21 cm HEIGHT: 2.09 in. / 5.3 cm WEIGHT: 3.20 lbs / 1.45 kg OUTPUT POWER 300W RMS @ 4 ohm, 150W RMS @ 8 ohm POWER REQUIREMENT 100/120V; 230V; 240V 50/60Hz (Voltage is factory preset according to region of sale) OTHERS BI-BAND LIMITER FOOTSWITCH (OPTIONAL): FLAT/SCOOPED-MID
